Quick Start

Obtain the Application

Download the latest release from GitHub:

• GitHub Releases
• Choose the installer for your platform (Windows/macOS)

Prerequisites

Before you begin, make sure you have completed the following:

1. Install the App — Follow the Windows Installation Guide or macOS Installation Guide to install the application
2. Install ADB — Android Debug Bridge is required for connecting to Android devices, see the ADB configuration in the installation guide
3. Connect Device — Ensure your Android device has USB debugging enabled and is connected to your computer via ADB

5 Steps to Complete Color Finding Script

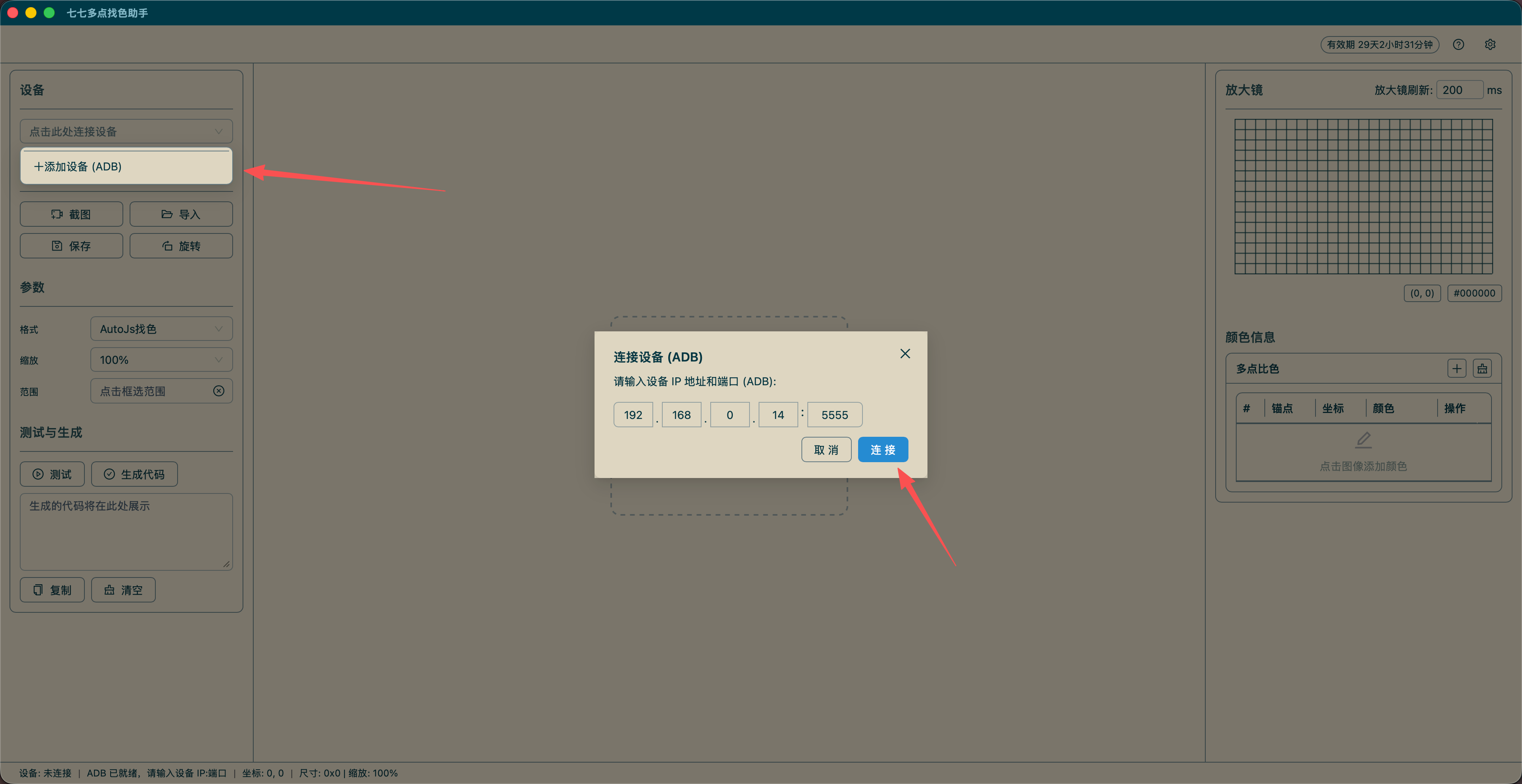

Step 1: Connect Device

1. Select device from the top dropdown, or click "Add Device" to enter IP:port (e.g., 192.168.1.100:5555)
2. Click "Connect" button
3. Status bar shows "Connected" when successful

Step 2: Screenshot

1. Ensure device is connected
2. Click "Screenshot" button to capture device screen
3. Screenshot displays in the center image area

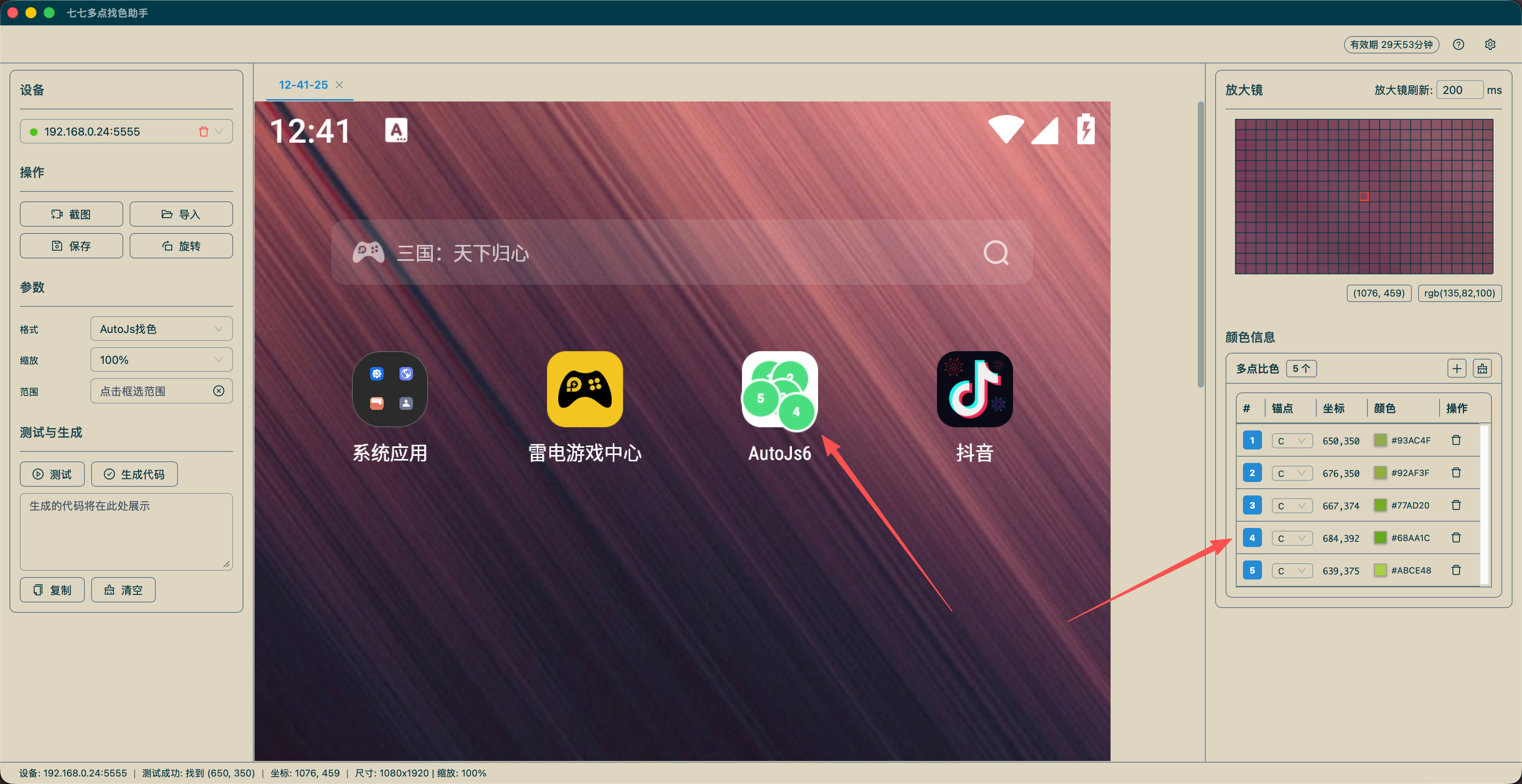

Step 3: Mark Color Points

1. Click target position on image to add color point automatically
2. Set anchor type (None/L/C/R) in the color list on the right
3. Click color value to copy hex color code

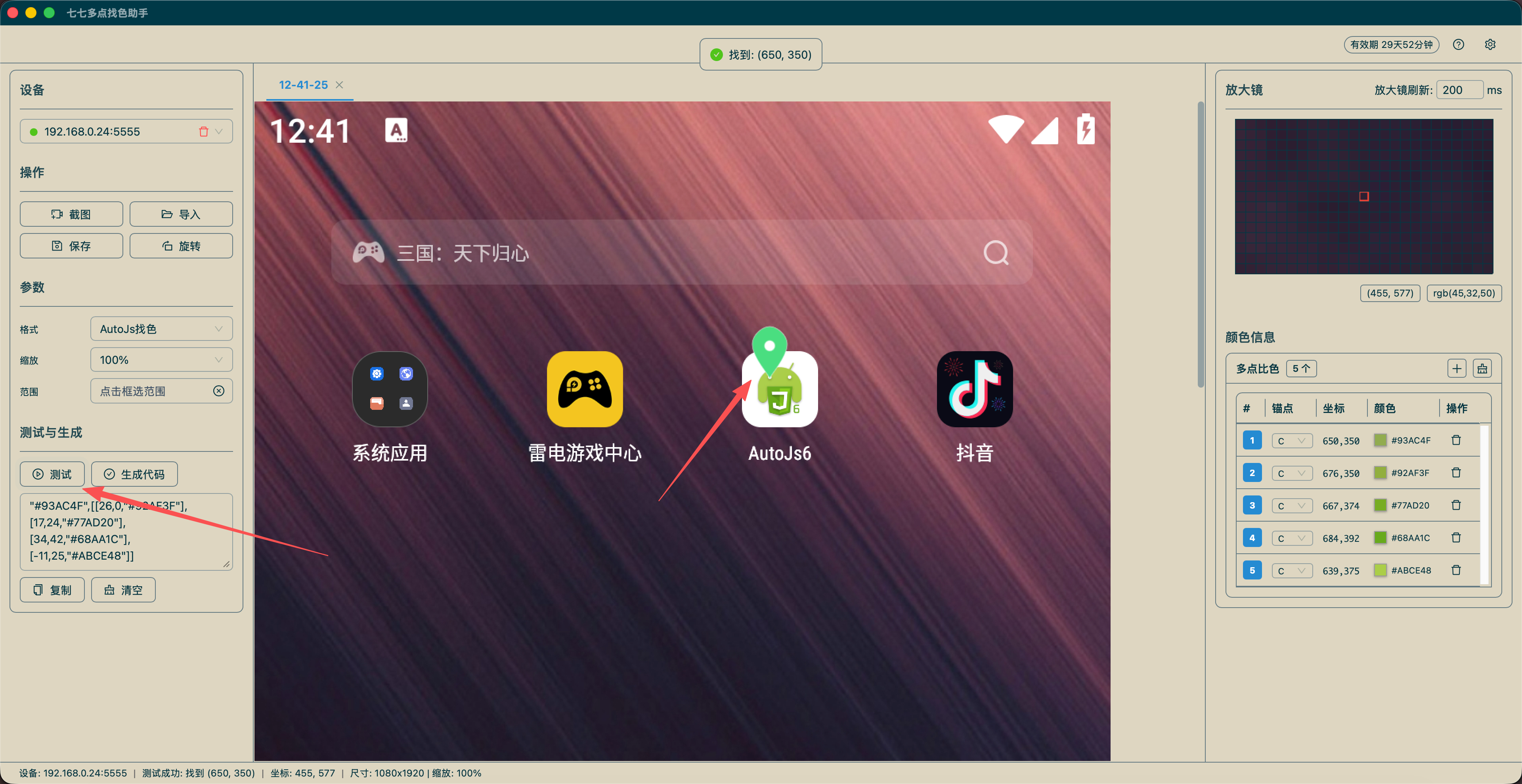

Step 4: Test

1. Click "Test" button after setting up
2. Check result: "Found: (x, y)" or "Not Found"

Step 5: Generate Code

1. Select code format (AutoJs FindColor/AutoJs CompareColor/DM FindColor/Anchor FindColor/Anchor CompareColor)
2. Click "Generate" button
3. Click "Copy" to copy code to clipboard

Next Steps

• Learn more about connection
• Learn more about screenshot import
• Learn more about color point operations
